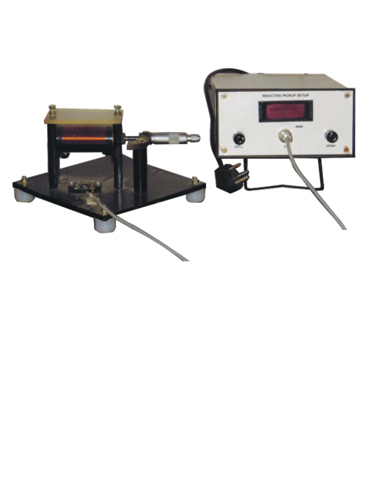

Displacement Measurement by Inductive Pickup
Here a simple setup is provided using which one can experiment with speed measurement characteristics of inductive type proximity switch. Here setup is supplied with PMDC motor & Speed controller unit.
Technical Details
• Motor: -Capacity: - 1/8 hp,
Type: - P.M.DC
Speed: - 1500 rpm
• Sensor: -Type: - Optical
• Speed Indicator: -
Range: - 30 to 9999 rpm
• Speed Controller : -
Type: - Solid State
