Drill Tool and Dynamometer

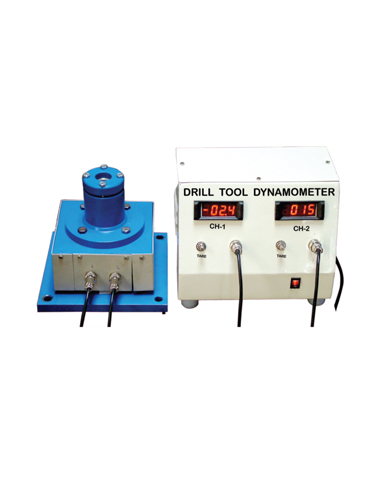

This is a armed wheel type strain gauge based Drill Tool Dynamometer designed to measure Thrust & Torque during drilling operation and effect of speed, feed cut on these forces. The unit consists of a mechanical sensing unit or test piece holder and digital force indicator. The job can be mounted on a workplace holder on mechanical sensing unit. The unit is useful for drilling up to 20 mm dia.
Technical Details
Mechanical Sensing Unit with Job Holder with
strain Gauges mounted on it.
• Digital Force Indicator - two channel,
to
read both
thrust and
torque simultaneously.
• Balancing
Potentiometer for initial
balancing
• Range - thrust - 0
to 200
Kg,
torque - 0
to 20.0
Kg m, least count – 0.1
Kg m.
• The set up is calibrated at our works.
