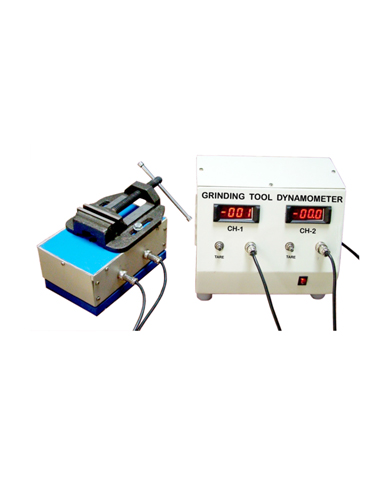

Grinding Tool Dynamo Meter
This is a simple setup to measure forces resolve during grinding operation based on strain gauges. It consists of a mechanical sensing unit with vice to mount job and digital force indicator.
Technical Details
• Mechanical sensing unit with strain gauges.
• Digital force indicator - 2 channel
to measure three
forces simultaneously.
• Range - 0
to 200kg
• Resolution - 1kg
• Balancing pots for initial zero setting.
• Machine vice
to hold job.
• the set up is calibrated at our works with the help
of
standard Proving Ring.
