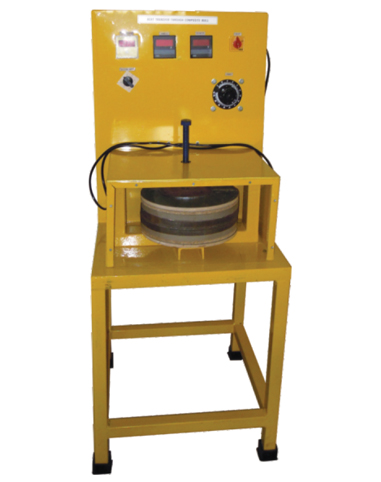

Heat Transfer through Composite Walls

Parameter	Details
Slab size :	M.S - 300mm x 25mm thick 2nos. Press Wood - 300 mm x 12 mm thick 2nos. Bakelite - 300 mm x 19 mm thick 2nos
Nichrome heater of suitable capacity. Control Panel comprising of –	I) Voltmeter 0 - 200 volts Ammeter 0-2 amps Dimmerstat 0-230V, 2amps
Digital temperature indicator	r 0-200°C with 0.10C least count using chromel alumel thermocouples cold provided with cold junction compensation.
-	Wooden cabinet of suitable size to accommodate the slab assembly with hand screw press.

To find out total Thermal conductivity and total thermal resistance of composite walls.

Study of variation of emissivity
