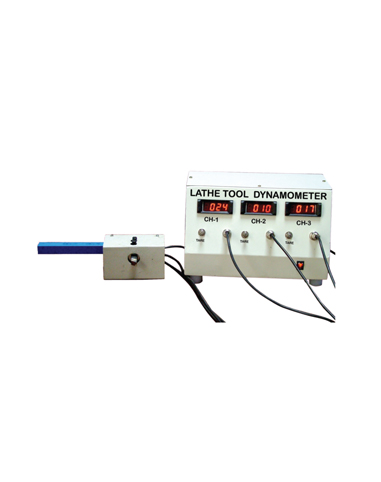

Lathe Tool Dynamometer
This is a strain Gauge Type two/three component Lathe Tool Dynamometer designed to measure vertical & horizontal/(radial force in case of three component) forces on tool during cutting process. The unit consists of a mechanical sensing unit or tool dynamometer, students can study the change in these forces due to change in speed, feed and depth of cut.
Technical Details
Mechanical Sensing Unit with
Tool Holder
and
Tool with strain Gauges
mounted on it.
• Digital Force Indicator - two/three channel,
to
read both forces simultaneously.
• Balancing
Potentiometer for initial
balancing
• Range - 0
to 200
Kg, least count - 1
Kg.
