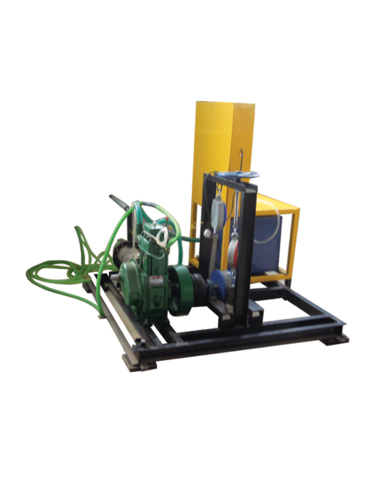

Single Cylinder Diesel Engine Test Rig with Electrical Dynamometer and Rope Break Dynamomete
Technical Details
| Parameter |
Details |
| Engine: |
Four stroke single cylinder water cooled, vertical diesel engine, developing 5 BHP at 1500 rpm. |
| Dynamometer |
Rope brake : Rope wound around water cooled brake drum and spring balance. |
| Electrical |
Suitable capacity Generator, and load bank with load measurement. Hydraulic dynamometer can be also s u p p l i e d i n s t e a d o f r o p e o r Electrical Dynamometer. |
| - |
Fuel int a ke mea surement arrangement. |
| - |
A ir i n t a k e m e a s u r e m e n t arrangement. |
| - |
Multichannel Digital temperature indicator to measure the temperature at various points. |
| - |
Water circulated exhaust gas calorimeter. The whole unit is mounted on a sturdy frame. A technical manual accompanies the unit. |
Range Of Experiment
With the help of various measurement provided, the rig c a n de t e rmi n e B H P, I H P, mechanical & thermal efficiencies, air fuel ratio, specific fuel consumption and heat balance sheet at various loads.
