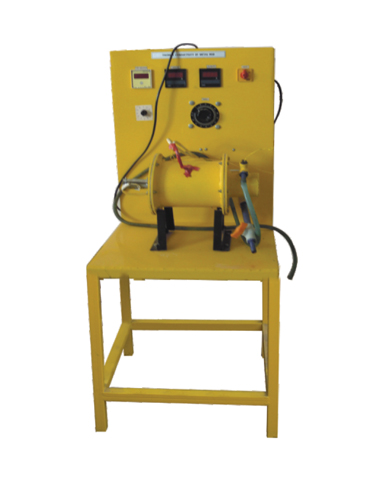

Thermal Conductivity of Metal Rod
Technical Details
| Parameter |
Details |
| Metal Bar copper |
25 x 430 mm long (approx) |
| Insulating powder shell |
200mm dia (approx) |
| Cooling water chamber |
100mm dia x 75 mm Long (approx) |
| Control Panel Comprising of |
a. Voltmeter : 0 – 200 volts.
b. Ammeter : 0 – 2A
c. Digital Temperature Indicator, 0-300° C
|
| Dimmerstat |
0 – 240 volts, 2A
with 0.1 L.C. using chromel
allumel thermocouples, cold
junction compensation. Stop
clock, measuring flask for flow
measurement. |
Range Of Experiment
Determination of temperature distribution along the length of given bar
Determination of thermal conductivity of given bar at various temperatures.
Determination of thermal conductivity of any metal bar other than supplied by proper fitting of bar in
