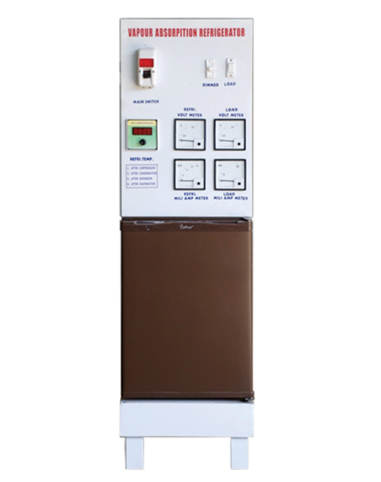

vapor Absorption Refrigeration Trainer

Range Of Experiment

• To study construction and working of a vapor absorption refrigerator • To evaluate performance of the refrigerator by calculating the C.O.P of the system

*Rating conditions :

Ambient temperature= 350 C, atmospheric pressure = 1.01 bar, suction pressure=70 psig, discharge pressure=300 psig, evaporation temperature=7.70 C, discharge temperature=550 C.

Technical Details

Sub-Title	Parameter
Model	vapor Absorption Refrigeration Trainer
Gross Volume	41 Liters
Refrigerant	Water, Ammonia, Hydrogen
Generator	Electrically Heated
Condenser	Natural Convection Type
Evaporator	Natural Convection Type
Material of Construction	M.S.
Supply	230 Volts, 50 Hz, 1 Ph
Energy Consumption	1.07 Kwh Per 24 Hrs
Temperature Indicator	Digital Indicator At The Salient Points
